12 Fibers MPO Sc Apc Patch Cord , Breakout Yellow Fiber Optic Cord For Storage Area Network

Product Categories
J&K Optotec Co.,Ltd.
Contact Now

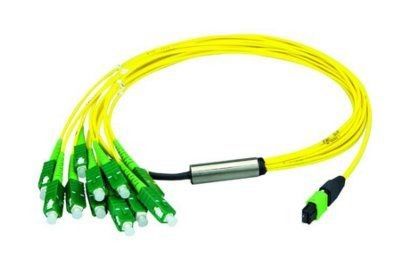

12 Fibers MPO Sc Apc Patch Cord , Breakout Yellow Fiber Optic Cord For Storage Area Network

Brand Name : J&K

Model Number : MPO / APC to SC / APC

Place of Origin : SHENZHEN,CHINA

MOQ : 50PCS

Price : Negotiation

Payment Terms : L/C, T/T

Delivery Time : 3~5days

Packaging Details : PE bag

Application : FTTH FTTB FTTX Network

Operating temperature : -20℃~+70℃

Name : fiber optic MPO patchcord

Durability (500 Matings) : ≤0.2dB

Storage temperature : -40℃~+85℃

Cable diameter : 3.0mm

Contact Now

MPO / APC to SC / APC Single Mode 12 Fibers Mpo Breakout Cable For Storage Area Network

Features

  • High fiber density
  • Insert/pull latching connector
  • Lower installation cost
  • High compatibility, flexibility& system performance

Applications

  • Data Center
  • QSFP Devices
  • LAN/SAN switch Equipment Distribution Area(EDA)
  • High Density optical laser


Specifications

Model Singlemode Multimode
Polish PC, APC PC
Insertion loss Standard ≤0.7dB ≤0.6dB
Elite low loss ≤0.35dB ≤0.35dB
Return loss PC≥50dB; APC≥60dB ≥30dB
Test wavelength 1310/1550nm 850/1310nm
Durability (500 Matings) ≤0.2dB
Operating temperature -20℃~+70℃
Storage temperature -40℃~+85℃
Fire resistant IEC 60794-2-30
Fiber type OS2, OM1, OM2, OM3, OM4
Cord type 8, 12, 24, 48, 72, 96, 144 cores
Cable diameter 3.0mm (8 or 12 or 24 core)
Cable jacket LSZH, OFNR, OFNP
Length(M) 0.3m, 1m, 2m, 5m, 10m, 25m, 50m, 100m

12 Fibers MPO Sc Apc Patch Cord , Breakout Yellow Fiber Optic Cord For Storage Area Network
