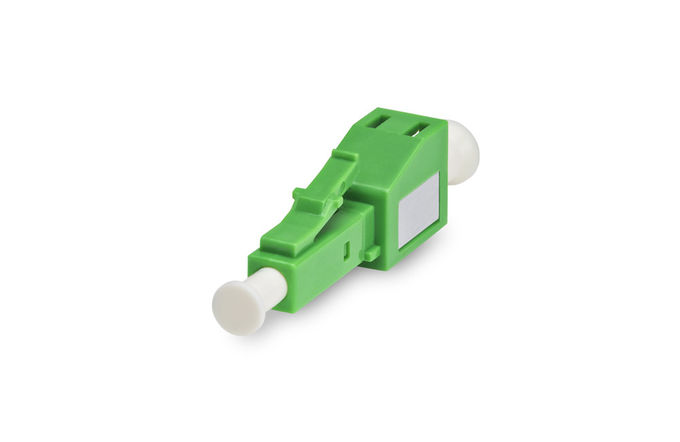

Plug Type LC / APC 4DB Fiber Optic Attenuator Plastic Materials For CATV System

Product Categories
J&K Optotec Co.,Ltd.
Contact Now

Plug Type LC / APC 4DB Fiber Optic Attenuator Plastic Materials For CATV System

  • 1
  • 2

Brand Name : J&K

Model Number : LC / APC Attenuator

Certification : ISO9001:2008

Place of Origin : SHENZHEN,CHINA

MOQ : 50PCS

Price : Negotiation

Payment Terms : L/C, T/T

Delivery Time : 3~5days

Packaging Details : Plastic box

Wavelength : 1310/1550nm

Product name : fiber attenuator

Polarization dep loss : <0.2dB

Operating Temp : -30~75℃

Storage Temp : -40~85℃

Attenuation range : 1~30dB

Contact Now

Male-Female LCAPC Attenuator SC LC ST FC Fiber Optic Attenuator Plug type

Features

  • High return loss
  • Simple structure
  • Max operation power(1W)
  • Low wavelength relativity
  • Low polarization related loss
  • Compact design


Applications

  • Fiber optical distributing frame
  • Fiber optical network system
  • Hi-speed fiber optical transmission system
  • CATV system
  • Long distance DWDM system
  • Optical add-drop multiplexers(OADM)


Specifications

  • Attenuation Accuracy: +/-0.5(1-10) +/-1.0(11-30)
  • Operating Wavelength: SM: 1310nm, 1550nm
  • Polarization dependent loss: Less than 0.2dB
  • Maximum Optical Input Power: 200mW
  • Operating Temp Range: -40-80 centigrade

Ordering information:

Connector type: SC, ST, FC, LC, MU, MTRJ, DIN
Application: UPC or APC
Plug-in type or male to female type

Connector Type SC/FC/ST/LC/MU/MTRJ
Operating Wavelength 1310,1550 nm
Attenuation Value 1dB to 10dB (±1dB), 15, 20, 25dB
Optical In-put Power ≥300 mW
Polarization Loss ≤0.20 dB
Return Loss (dB) P Grade(Return Loss≥50dB) , A Grade(Return Loss≥40dB)
Operating Temp (degree) -30_+75
Storage Temp (degree) -40_+85

Plug Type LC / APC 4DB Fiber Optic Attenuator Plastic Materials For CATV SystemPlug Type LC / APC 4DB Fiber Optic Attenuator Plastic Materials For CATV System
