Brand Name : J&K
Model Number : LC/APC-LC/UPC SM SX
Certification : ROHS
Place of Origin : SHENZHEN,CHINA
MOQ : 20PCS
Price : Negotiation
Payment Terms : L/C, T/T
Delivery Time : 3~5days
Packaging Details : PE bag
Application : FTTH FTTB FTTX Network
Length : 1m 2m 3m or Customized
Material : PVC/LSZH
Product name : Fiber Optic Patch Cord
Repeatability : ≤ 0.1dB
Polish : PC/UPC/APC

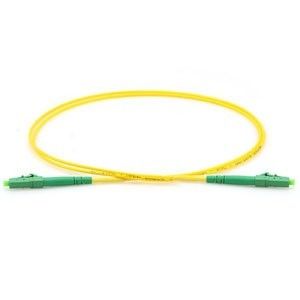

LC / APC - LC / APC Simplex Simplex SM 3.0 2.0mm fiber optic Patch Cord
Features
Applications
Specifications
| Mode | SM |
 MM  			 |  		|
| Polish | UPC | APC |
 APC
  |
| Insertion Loss | Typical ≤0.2dB Maximum ≤0.3dB |  			≤0.25dB | |
| Return Loss | ≥50dB | ≥65dB |  			 ≥35dB
  |
| Interchangeability |
 ≤0.2dB  			 |  		||
| Repeatability |  			 ≤0.1dB
  |  		||
| Durability |
 ≤0.2dB (1000 times mating)
  |  		||
| Tensile Strengh |
 > 10kg  			 |  		||
| Temperature |
 ≤0.2dB (-40+85 sustain 100 hours)
  |  		||
| Humidity |  			 ≤0.2dB (+25+65 93 R.H.100 hours)
  |  		||

|
                                             |

                        LC / APC - LC / APC Sc Lc Patch Cord , SM 3.0 / 2.0mm Fiber Pigtails Patch Cords Images |
